Hayward Aqua-Rite 220V Low Salt Chlorine Generator, 25,000 gal - AQR-LS-CUL

SKU:10003925
$1,589.99

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
The Aqua Rite Low Salt Electronic Chlorine Generator from Hayward offers the same simple, safe and affordable approach to pool sanitization that you would expect from the original Aqua Rite, but uses virtually half the amount of salt, making it an even more environmentally friendly approach to salt chlorine generation. They easily install on standard filtration system, both for new construction and on existing pools.

Forget about mixing, measuring or messing around with harsh liquid or tablet chlorine. Say goodbye to red eyes, itchy skin, heavy chemical odors and the bleaching of toys and clothes. Now there’s an easier, more efficient and cost-effective way to satisfy 100% of your sanitization needs and enjoy pool water that’s always clean, clear and luxuriously soft.

Aqua Rite Low Salt uses advanced electrolytic technology to convert a small amount of ordinary salt – one teaspoon per gallon of pool water – into a virtually endless supply of fresh, pure chlorine. The process can produce enough chlorine a day to satisfy the sanitization requirements of pools up to 25,000 gallons. And since the salt doesn’t wear out or evaporate, you rarely have to add more.

There are two components to AquaRite Low Salt: the control box and its patented TurboCell®, a specially designed electrolytic converter that installs on your system’s return line, behind the pump, filter and heater.

As pool water passes through the TurboCell, an extremely safe electrical charge generated by the control box automatically converts the dissolved salt into fresh, pure chlorine. The water is then dispersed evenly throughout the pool by the return jets.

Each time the water is recirculated, the salt-based chlorine gets recharged and the cycle is repeated.

Salt is present in multiple locations such as in tap water and in pools treated with stabilized liquid or chlorine. Over time, conventionally treated pools will have an elevated residual of salt as a by-product of sanitizing. The AquaRite Low Salt chlorinator has the ability to stop producing chlorine at 800 p.p.m. and operates at just 1200 - 1800 p.p.m., lower salt levels reduce corrosion concerns and is safer for the environment.
FEATURES & BENEFITS
• Use multiple units for larger pools
• Digital salt display and 8 diagnostic indicators
• Patented Turbo Cell for maximum efficiency and flow rates
• Quick, weatherproof connections inside control door
• Locking weatherproof enclosure
A GREEN APROACH TO POOL SANITIZATION
The Aqua Rite Low Salt Chlorine Generator from Hayward offers the same simple, safe and affordable approach to pool sanitization that you would expect from the original Aqua Rite, but uses virtually half the amount of salt, making it an even more environmentally friendly approach to salt chlorine generation. They easily install on standard filtration systems, both for new construction and on existing pools.

Salt (NaCl) is present in tap water and in pools treated with stabilized liquid or chlorine pucks. Over time, conventionally treated pools will have an elevated residual of salt as a by-product of sanitizing. The Aqua Rite Low Salt chlorinator has the ability to stop producing chlorine at 800 p.p.m. and operates at just 1200 - 1800 p.p.m. (this is roughly half the amount of the standard Aqua Rite.) The benefits of lower salt levels include a reduction/elimination of electrolytic corrosion, a reduced environmental impact as well as reduced operation costs with less salt addition.

Installing the Aqua Rite Low Salt does not change from a typical installation, however it is a good idea to ensure the water is tested for salt prior to adding salt. In many cases when installed on an existing pool previously sanitized by liquid or pucks - NO salt will be needed.

A LITTLE SALT GOES A LONG WAY

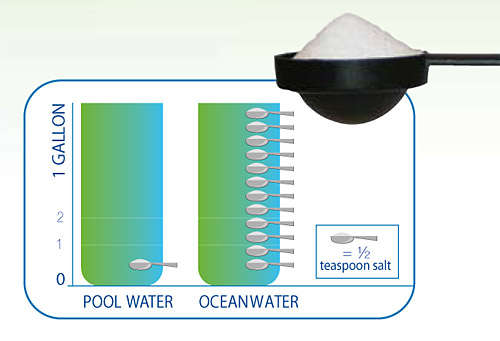

Aqua Rite® Low Salt uses advanced electrolytic technology to convert a small amount of ordinary salt – one teaspoon per gallon of pool water – into a virtually endless supply of fresh, pure chlorine. The process can produce enough chlorine a day to satisfy the sanitization requirements of pools up to a size of 18 x 36. And since the salt doesn’t wear out or evaporate, you rarely have to add more.
THE SCIENCE BEHIND THE TECHNOLOGY
There are two components to Aqua Rite Low Salt: the control box and its patented Turbo Cell®, a specially designed electrolytic converter that installs on your system’s return line, behind the pump, filter and heater. As pool water passes through the Turbo Cell, an extremely safe electrical charge generated by the control box automatically converts the dissolved salt into fresh, pure chlorine. The water is then dispersed evenly throughout the pool by the return jets. Each time the water is recirculated, the salt-based chlorine gets recharged and the cycle is repeated.


BENEFITS OF AQUA RITE LOW SALT
The advantages of Aqua Rite Low Salt automatic salt chlorine generation over traditional factory-produced chlorine are too numerous to list. Here are just a few of the benefits:

Enhanced Swimming Experience
• Soft, silky-smooth water
• No more red eyes, itchy skin
• No chlorine odor
• No bleaching of clothing or toys

Increased Safety
• Reduces handling and storage of toxic chemicals
• No harsh shockings necessary
• Even, consistent chlorine dispersion; no more unhealthy highs and lows
• No caustic or harmful byproducts
• NSF and CUL approved, PMRA registered

Reduced Maintenance and Costs
• Minimal maintenance. More leisure time
• User-friendly monitor system with LED service alerts
• Easy to use – one dial adjusts chlorine output
• Low operating costs
• No need for additional plumbing or parts

Added Convenience
• Perfect for new or existing pools
• Perfect for replacing existing salt machines
SPECIFICATIONS
Aqua Rite® Low Salt Control Panel
• Input Power - 120/240VAC, 50/60Hz, 2A@120V, 1A@240V
• Salinity Range - 1,200 to 1,800 ppm
• Weight - 17 lbs. (7.7 kg)
• Enclosure Size - 13" W x 11" H x 5" D (330 x 279 x 127 mm)
• Weather-Tight Enclosure Construction - Galvanized steel; white enamel finish
• Standardization - NSF, CUL, PMRA

Turbo Cell®
• Maximum Pressure - 200 psi (factory-tested)
• Pressure Drop (through cell) - 1 psi at 100 gpm
• Weight - 4 lbs. (1.8 kg)
• Length (including union tailpieces) - 15.75" (400 mm)
• Materials - Cell body: ABS, UV inhibited Electrodes: Titanium-ruthenium-coated
• Unions - 2 supplied, 2" slip tailpiece
• Cell Cable - 15 ft. (4.572 m) standard

Optimal Water Chemistry
• Chemical - Ideal Levels
• Salt - 1,200 to 1,800 ppm
• Free Chlorine - 1.0 to 3.0 ppm
• pH - 7.2 to 7.6
• Cyanuric Acid (Stabilizer) - 20 to 30 ppm (if necessary)
• Total Alkalinity - 80 to 120 ppm
• Calcium Hardness - 125 to 250 ppm
• Metals - 0 ppm
• Saturation Index: -0.2 to 0.2 (0 optimal)

The Standards Council of Canada (SCC) has granted UL - Canadian Certification Organization (CO) and Testing Organization (TO) status, which accredits UL to conduct tests and issue certifications to Canadian National Standards.

This Product is PMRA APPROVED - The Health Canada Pest Management Regulatory Agency (PMRA) is responsible for pesticide regulation in Canada. Created in 1995, this branch of Health Canada consolidates the resources and responsibilities for pest management regulation.

Buying this product from Discounter's Pool & Spa Warehouse means you are buying a Canadian Certified and Regulated product, Hayward Canada only Warrants products that are purchased in Canada and do this by tracking Serial Numbers. If you are to purchase from across the border you will not have a valid manufactures warranty and will not have a Certified / Regulated Canadian Product.

Product Warranty: 3 Year Manufacture Warranty
